The newly developed 3528 Double Line SMD
Flexible Strip with
15MM wide white PCB provides an affordable, low energy consumption
solution where stability and longevity are paramount. It provides
almost twice the brightness
Part Number |
Color |
LED Q'ty
|
Λd(nm)
/Tc(K) |
Luminous Flux |
Work
Voltage |
Power |
Packing |
DL-DF3528-A120-R-12 |
Red |
3528SMD
240LEDs/m |
620~630 |
320~400 |
DC12V |
19.2W/m |
5m/reel |
DL-DF3528-A120-Y-12 |
Yellow |
585~595 |
320~400 |
DC12V |
19.2W/m |
5m/reel |
DL-DF3528-A120-B-12 |
Blue |
455~470 |
280~360 |
DC12V |
19.2W/m |
5m/reel |
DL-DF3528-A120-G-12 |
Green |
510~525 |
400~440 |
DC12V |
19.2W/m |
5m/reel |
DL-DF3528-A120-P-12 |
Pure White |
6000~7000K |
1400~1440 |
DC12V |
19.2W/m |
5m/reel |
DL-DF3528-A120-W-12 |
Warm White |
3000~3500K |
1040~1080 |
DC12V |
19.2W/m |
5m/reel |
Features
1. Power 3528 TOP SMD
LED as
lighting sources.
2. LED strip Color: Pure White and Warm White are available.
3. Input voltage: DC 12V /24V.
4. Can be cut by 12 LED (DC 12V) and 24 LED (DC 24V) and connect again
by our accessories
5. With 3M tape on the backside.
6. Packing: 5m/reel in an anti-static package.
7. PCB Dimension: 500×15×0.25mm
8. Certification: CE RoHS
Applications:
Waterproof super
bright led
strips are widely used in outdoor sign making, underwater decoration
and accent lighting, although the applications are limitless given the
durability of the product.
Currently available in cool white and warm white, the small form factor
and and superior light output make Luna Strip Ribbon ideal for a wide
range of applications, such as cove lighting, back lighting,
illumination lighting, guidance lighting and channel letter lighting.

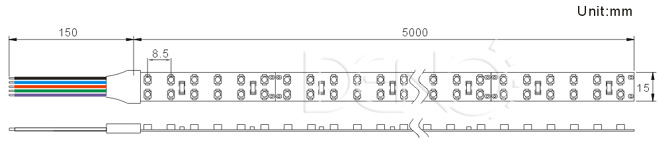

Dimension:

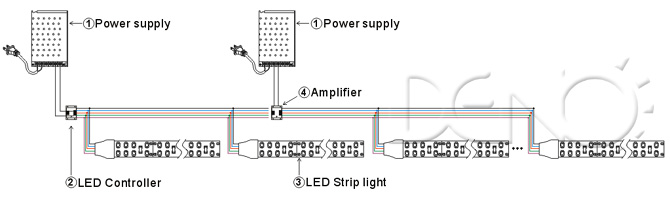

Connect Drawing:
Note:
1、Please make LED
drivers
compatible with Super Bright LED strips before use LED strips.
2、To use Super Bright LED strips 5M in serial, longer than 5M in
parallel.
3、Before use, first check the power supply used in compliance with of
the power requirements.
4、Each roll ask for independent power supply not to use of multi-volume
series use.
