Products - LED Strips -
5050 Flexible LED Strips series - 30LEDs/meters with Silicone Tube and
Silicone Glue
|
| Part Number |
Color |
LED Q'ty |
Λd(nm)
/Tc(K) |
Luminous Flux (lm) |
Work
Voltage |
Power |
Waterproof
Grade |
PCB
Dimensions |
| DL-F5050-D15-R-12 |
Red |
30led/m |
620-630 |
130-150 |
DC12V |
7.2W/m |
IP68 |
500×10×0.22mm |
| DL-F5050-D15-Y-12 |
Yellow |
30led/m |
585-595 |
130-150 |
DC12V |
7.2W/m |
IP68 |
500×10×0.22mm |
| DL-F5050-D15-B-12 |
Blue |
30led/m |
455-470 |
110-130 |
DC12V |
7.2W/m |
IP68 |
500×10×0.22mm |
| DL-F5050-D15-G-12 |
Green |
30led/m |
510-525 |
230-250 |
DC12V |
7.2W/m |
IP68 |
500×10×0.22mm |
| DL-F5050-D15-P-12 |
Pure
White |
30led/m |
6000-7000K |
400-420 |
DC12V |
7.2W/m |
IP68 |
500×10×0.22mm |
| DL-F5050-D15-W-12 |
Warm White |
30led/m |
3000-3500K |
310-330 |
DC12V |
7.2W/m |
IP68 |
500×10×0.22mm |
| DL-F5050-D15-C-12 |
RGB |
30led/m |
620-630
585-595
455-470 |
40-50
100-110
35-45 |
DC12V |
7.2W/m |
IP68 |
500×10×0.22mm |
Features of 5050 LED strip light :
1. TOP SMD 5050 Super bright LED as lighting sources
2. Different colors are available
3. Input voltage: DC12V, Every 3-LED are cuttable for 12V strips
4. Matching middle-connector & suitable driver
5. Packing: 5m/reel in an anti-static package; White, Black, Yellow PCB
Board are available
6. Waterproof: Non-Waterproof; Waterproof Grade: IP45
7. LED Q'ty: 150LEDs/roll
8. PCB Dimension: 500×10×0.22mm
9. View Angle: 120°
10. Certification: CE RoHS

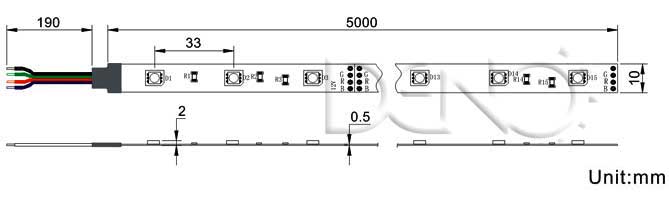

Structure of product :

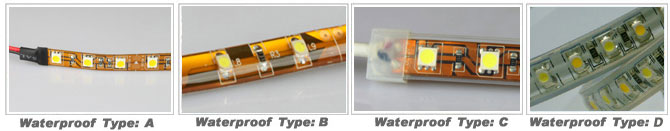

Different Waterproof type are available :
A type:
Non-Waterproof
B type:
Waterproof
material with Single-Side Glued
----------------------------------------------------IP65
C type:
Waterproof
material with Silicone Tube
----------------------------------------------------------IP67
D type:
Waterproof
material with Silicone Silicone Glue + Silicone U type groove
-------------IP68
E type:
Waterproof
material with Silicone Glue + Silicone Tube
------------------------------------IP68
Applications of 5050 LED strip light :
﹡ Amusement park, theater & aircraft cabin mood lighting
﹡ Auditorium walkway lighting
﹡ Cove lighting
﹡ Architectural lights for canopy, corridor, window, archway
﹡ Backlight or edge lighting for signage
﹡ DIY lights for home use
﹡ Concealed lighting
﹡ Path and contour marking
﹡ Decorative lights for holiday, event, show, exhibition.
Note of 5050 LED Strip light :
• Please make LED drivers compatible with 5050 LED strips
light before use LED strips.
• To use 5050 LED strip light 5M in serial, longer than 5M in
parallel.
• Before use, first check the power supply used in compliance
with of the power requirements.
• Each roll ask for independent power supply; not to use of
multi-volume series use.
|
|
