| Part Number |
Color |
LED Q'ty
|
Λd(nm)
/Tc(K) |
Luminous Flux |
Work
Voltage |
Power |
Dimensions |
Waterproof
Grade |
| F3528-D30-R-12 |
Red |
3528SMD
60LEDs/m |
620-630 |
80-100 |
DC12V |
4.8W/m |
500×10×0.45mm |
IP68 |
| F3528-D30-Y-12 |
Yellow |
585-595 |
80-100 |
DC12V |
4.8W/m |
500×10×0.45mm |
IP68 |
| F3528-D30-B-12 |
Blue |
455-470 |
70-90 |
DC12V |
4.8W/m |
500×10×0.45mm |
IP68 |
| F3528-D30-G-12 |
Green |
510-525 |
200-220 |
DC12V |
4.8W/m |
500×10×0.45mm |
IP68 |
| F3528-D30-P-12 |
Pure
White |
6000-7000K |
310-330 |
DC12V |
4.8W/m |
500×10×0.45mm |
IP68 |
| F3528-D30-W-12 |
Warm White |
3000-3500K |
260-2800 |
DC12V |
4.8W/m |
500×10×0.45mm |
IP68 |

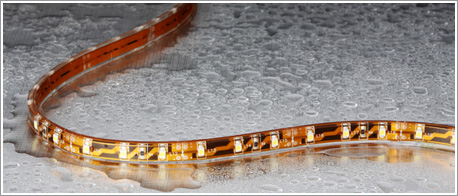

Features
1. Waterproof type: Silicone Tube + Silicone Glue
2. Waterproof Grade: IP68
3. TOP SMD 3528 Super bright LED as lighting sources
4. Different colors are available
5. Input voltage : DC12V / 24V
6. Packing: 5m/reel in an anti-static package
7. SMD LEDs: 60PCS/m
8. PCB Dimension: 500×8×0.22mm
9. Size for Waterproof led strip: 500×10×0.45mm
10. With 3M adhesive tape on backside
11. Certification: CE RoHS
Different Waterproof type are available :
A
type: Non-Waterproof
B type:
Waterproof
material with Single-Side Glued
------------------------------------------------IP65
C type:
Waterproof
material with Silicone Tube
------------------------------------------------------IP67
D type:
Waterproof
material with Silicone Silicone Glue + Silicone U type groove
---------IP68
E type:
Waterproof
material with Silicone Glue + Silicone Tube
--------------------------------IP68
Different PCB Color are available:
Applications:
﹡ Amusement park,
theater
& aircraft cabin mood lighting
﹡ Auditorium walkway lighting
﹡ Cove lighting
﹡ Architectural lights for canopy, corridor, window, archway
﹡ Backlight or edge lighting for signage
﹡ DIY lights for home use
﹡ Concealed lighting
﹡ Path and contour marking
﹡ Decorative lights for holiday, event, show, exhibition.
Note:
• Please
make LED
drivers compatible with 3528 LED strips light before use LED strips.
• To use 5050 LED strip light 5M in serial, longer than 5M in
parallel.
• Before use, first check the power supply used in compliance
with of the power requirements.
• Each roll ask for independent power supply; not to use of
multi-volume series use.
