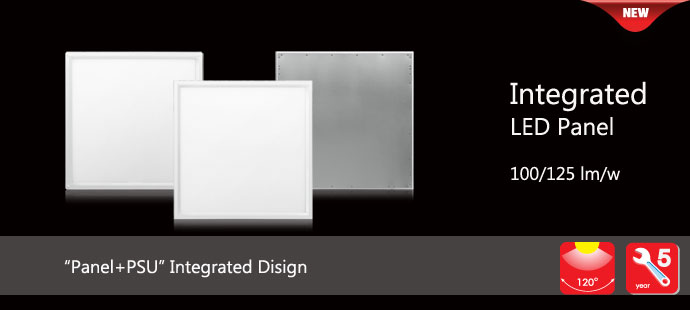

Integrated LED Panel
Features
1.Special body design, integrated the driver with
the panel, easy to install and transport;
2.Adopt the design with patent structure, the one-piece real cover,
significantly increase the lighting's intensity;
3.Adopt the silk-screen free technique LGP material, make the light
shape uniform and light efficiency high;
4.Integrated varies installtion ways, make the installation flexible;
5.High light efficiency(100lm/w), achieve to the aim to save energy;
6.With the over-temparature protection, over-current protection,
over-voltage protection, increase life span;
7.PF>0.9, meet the CE certificate;
8.When the voltage changing from 200-260V, the power will keep the
same, make the environment more comfortable;
9.With sufficient patents.
Technical
Parameters :
| Model |
Dimension
(mm)
|
LED
Type
|
power |
CRI |
Brightness
(CW)
|
Light
|
Installation
Method |
Input
Voltage |
| AKM-APAG-X |
595X595mm |
SMD2835 |
32W |
>80
|
3200lm |
100lm/w |
hanging/
embedded
/surface mounted
|
100-240/
200-240VAC
|
| AKM-APAG-X |
595X595mm |
SMD2835 |
30w |
>80
|
3800lm |
125lm/w |

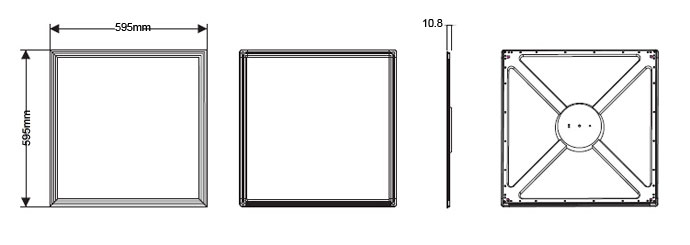

Product
schematic
Application:
1. Hotel.
2. School.
3. Factory and office.
4. Hospital.
5. Commercial buildings.
6. Residential or public facilities.
7. Retail facilities
8. Any application requiring advanced energysaving and high CRI.
INSTALLATION
METHOD
Che has been designed with the installer in mind;
simple, safe and secure;
Che is easy to fit and will remain a reliable
lighting fixture.

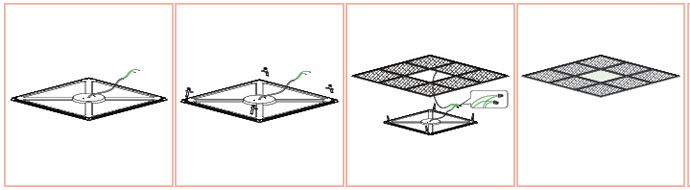

1.Embedded Installation Diagram
2.Spring Card Buckle Installation Diagram

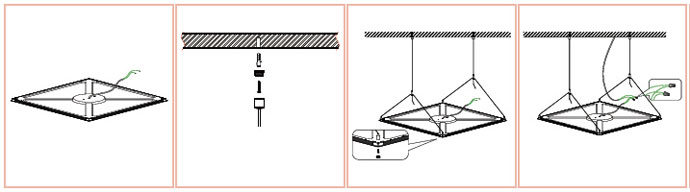

3.Hanging Installation Diagram

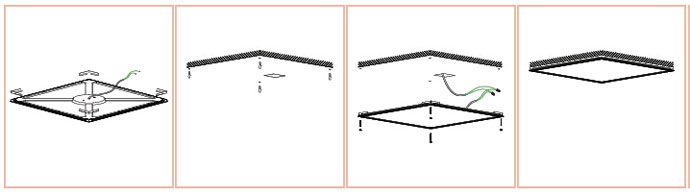

4.Ceiling Installation Diagram
PACKAGING
INFORMATION :

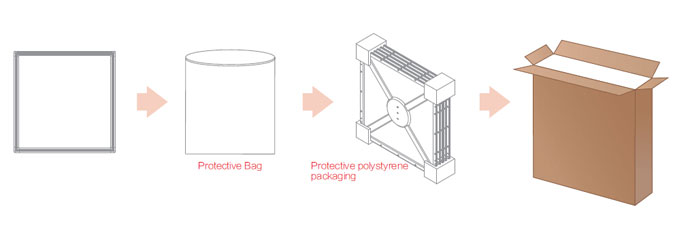

Illustration for packaging
Packing details
| Model |
Dimension
(mm)
|
Carton Size
|
Q'ty/
Carton |
N.W.
(Kg) |
G.W.
(Kg)
|
| AKM-AMAG-X |
595x595x10.5 |
650x155x655 |
5PCS |
2.8kg |
15 |
| AKM-ALAG-2 |
595x595x10.8 |
650x155x655 |
5PCS |
3.0
k g |
16 |
Note :
1.When installation, try to avoid the
minefields, strong magnetic field and high-voltage area;
2.Ensure a solid connection correctly in order to avoid short-circurt
damage to components and trigger fires ;
3.Installed in a well-ventilated place to ensure appropriate
environmental temperature;
4.Pleas e check local voltage i n accordance wi t h the product
requirements before using the product ;
5.To prohibit the l ive wiring,check t o confirm the wiring correct ,
confirm no short-circuit and then power on;
6.In case of failures . Do not maintain it in private.
