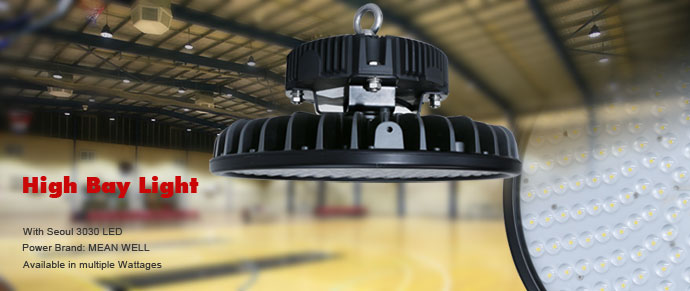

High Bay Lighting
Features
1.Energy saving and power saving:
power consumption,saving above 80% energy more than
traditional halogen lamp, energy saving.
2.Long lifespan:
famous brand LED chip selection, it can reach to 60000 H.
3.Green environmental protection:
no radiation, not including mercury, lead and harmful
substances, will not cause environmental pollution.
4.High light efficiency:
90% of its electricity transformed into a visible light.
5.Use safe:
low voltage, low current, low temperature,convenient
installation.
6.High CRI:
good color rendering index, more true to color rendering for
things, match different environmental needs.
7.IP level: IP65.
Technical
Parameters :
| Model |
Power
Brand
|
LED
Power
|
LED
Light Source |
Input
Voltage |
Power
Frequency
|
Working
Temperature |
Installation
Way |
| AK-HB090AF-A |
 |
90W |
Seoul
3030 LED
|
90-277VAC |
50/60Hz |
-30～
+60℃ |
Hanging
Installed |
| AK-HB120AF-A |
120W |
90-277VAC |
50/60Hz |
-30～
+60℃ |
Hanging
Installed |
| AK-HB150AF-A |
150W |
90-277VAC |
50/60Hz |
-30～
+60℃ |
Hanging
Installed |
| AK-HB200AF-A |
200W |
90-277VAC |
50/60Hz |
-30～
+60℃ |
Hanging
Installed |
| AK-HB240AF-A |
240w |
90-277VAC |
50/60Hz |
-30～
+60℃ |
Hanging
Installed |
Photoelectricity
Parameter :
| Model |
LED Q'ty
(PCS)
|
CCT.
|
Flux.
(±10%) |
Light
Efficiency
(±10%) |
(CRI)
|
Lighting
Angle |
IP
Level |
| AK-HB090AF-A |
80 |
5000K
(3000K、4000K Optional)
|
8100/9000lm |
90/100lm/W |
Ra＞80 |
80°/110° |
Ip65 |
| AK-HB120AF-A |
94 |
10800/12000lm |
90/100lm/W |
Ra＞80 |
80°/110° |
Ip65 |
| AK-HB150AF-A |
117 |
13500/15000lm |
90/100lm/W |
Ra＞80 |
50°/80°/110° |
Ip65 |
| AK-HB200AF-A |
210 |
18000/20000lm |
90/100lm/W |
Ra＞80 |
50°/80°/110° |
Ip65 |
| AK-HB240AF-A |
280 |
21600/24000lm |
90/100lm/W |
Ra＞80 |
50°/80°/110° |
Ip65 |
Product
schematic

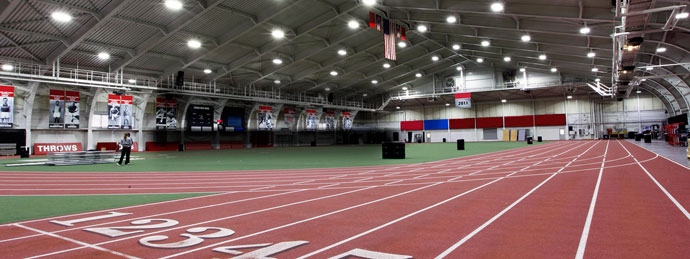

Application:
1.Suitable for Workshop, Warehouse.
2.Gymnasium, Gas station.
3.Shopping mall, Garage and other Lighting Purposes.

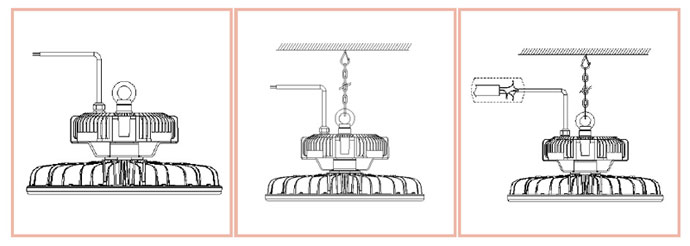

INSTALLATION
METHOD
Hanging installation
diagram
PACKAGING
INFORMATION :

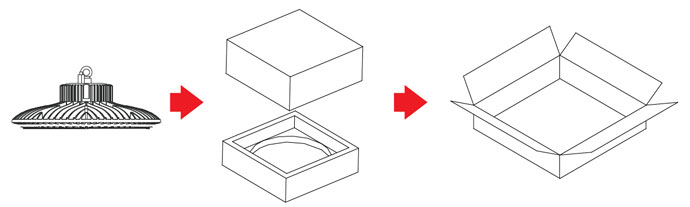

Illustration for
packaging
Packing details
| Model |
Dimension
(mm)
|
Carton Size
|
Q'ty/
Carton |
N.W.
(Kg) |
G.W.
(Kg)
|
| AK-HB090AF-A |
Φ228xH196 |
L370xW370xH220 |
1PCS |
3.6
k g |
4.8
k g |
| AK-HB120AF-A |
Φ235xH196 |
L370xW370xH220 |
1PCS |
3.6
k g |
4.8
k g |
| AK-HB150AF-A |
Φ268xH196 |
L480xW480xH220 |
1PCS |
5.6
k g |
7.0k
g |
| AK-HB200AF-A |
Φ350xH202 |
L480xW480xH220 |
1PCS |
6.2
k g |
7.6
k g |
| AK-HB240AF-A |
Φ350xH202 |
L480xW480xH220 |
1PCS |
6.2
k g |
7.6
k g |
Note
:
1.When installation, try to avoid
the minefields, strong magnetic field and high-voltage area;
2.Ensure a solid connection correctly in order to avoid short-circurt
damage to components and trigger fires ;
3.Installed in a well-ventilated place to ensure appropriate
environmental temperature;
4.Pleas e check local voltage i n accordance wi t h the product
requirements before using the product ;
5.To prohibit the l ive wiring,check t o confirm the wiring correct ,
confirm no short-circuit and then power on;
6.In case of failures . Do not maintain it in private.
