Products - Other LED Products - LED Flood Light
1. Multi-Chip on Lead Frame, Single Module LED Package Design
2. System Design Integrating Power Supply, LED Light Engine, and Heat Sink
3. Over Current, Over Voltage, Over Heat, Thunder Protection
4. Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
5. Long lifespan for LED 50,000 hrs
6. 100% Recycle, No Pollution, and UV, IR

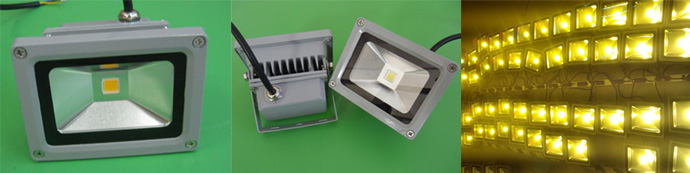

led flood light 10W

Technical Specifications


  •     Part No. DL-FL-A-10W-WW warm white (WW 2800-3500K) 600 ~ 650lm
    DL-FL-A-10W-NW Neutral white (NW 4000-5000K) 650 ~ 700lm
    DL-FL-A-10W-PW Pure white (PW 5500-7000K) 700 ~ 750lm
  •     LED Power                                              10W
  •     Power factor (PF)                                  >0.93 220V & >0.98 110V
  •     Input Voltage                                          AC100-265V
  •     Driver Efficiency                                     85%
  •     IP Grade                                                    IP65
  •     Beam Angel                                            120°
  •     N.W.                                                           0.5KG
  •     Carton Size                                             120*90*95mm
  •     LED Lumen                                              600-750lm
  •     Cover                                                         Toughened Glass
  •     Lifesapn                                                    50000 hours
  •     Dimension                                                 L115*W86*H85mm
  •     Housing Material                                     Die Casting Aluminum
  •     Case Color Available                              Black / Gray
  •     Average Iilluminance 1M = 75lux
    2M = 22lux
    3M = 12ux
  •     Facula Area 1M = 3.5 m²
    2M = 6.5m²
    3M = 9.5m²
  •     Certification                                             CE & FCC & RoHS
  •     Warranty                                                   3 year

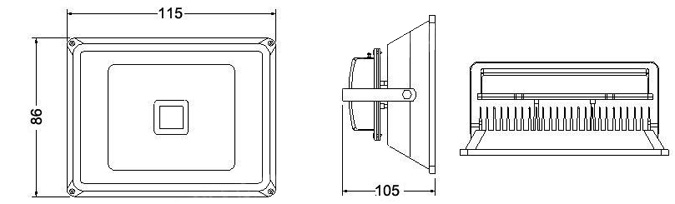

Dimension of 10W led flood light

Dimension of led flood light

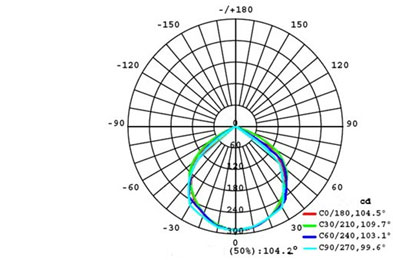

Optical Parameters of led flood light

Optical Parameters of led flood light
